THERMAZEE® was engineered to solve one of the biggest challenges associated with traditional Z-furring: thermal bridging. Using THERMASTOP® thermal isolators and a highly optimized web design, THERMAZEE® dramatically reduces heat flow through the support system while maintaining the strength, durability and installation simplicity contractors expect from traditional Z-furring. It improves overall wall assembly performance and supports compliance with the 2024 IECC.
Designed for versatility, THERMAZEE® can be installed vertically or horizontally and supports a wide range of cladding materials, including fiber cement, metal panels, HPL, ACM and more. Its highly perforated profile promotes drainage and ventilation within the rainscreen cavity, while pre-punched wall-anchor holes and integrated thermal isolation components simplify installation across multiple substrate types.
Key Features & Benefits
- Installs much like traditional Z-furring
- Significantly improves thermal performance over traditional Z-furring
- Manages moisture by directing water away from the substrate
- Meets North American energy code requirements
- Broad design flexibility for architectural creativity
- Cost-effective solution for high-performance envelopes
Technical Specifications
ORIENTATION
Installs vertically or horizontally
DEPTHS
1.5, 2, 2.5, 3, 3.5, 4, 4.5 and 5 inches
THERMAL PERFORMANCE
Project value pending technical confirmation
LOAD CAPACITY
Cladding weights up to 25 PSF*
FASTENER TYPE
Thermally isolated LD/TP fasteners
INSULATION
Rigid insulation, mineral wool, HD mineral wool and spray foam
ACCESSORIES
Compatible with PANELRAIL®, REVEALRAIL, MOVEKLIP® and INSULKEY®
Product Video
Available Downloads
00
THERMAZEE® Summary Sheet
00
THERMAZEE® Data Sheet
00
THERMAZEE® Thermal Performance
00
LD & TP Wall Anchor Data Sheet
00
THERMAZEE® EPD
00
THERMAZEE® Design & Installation Recommendations (PDF)
00

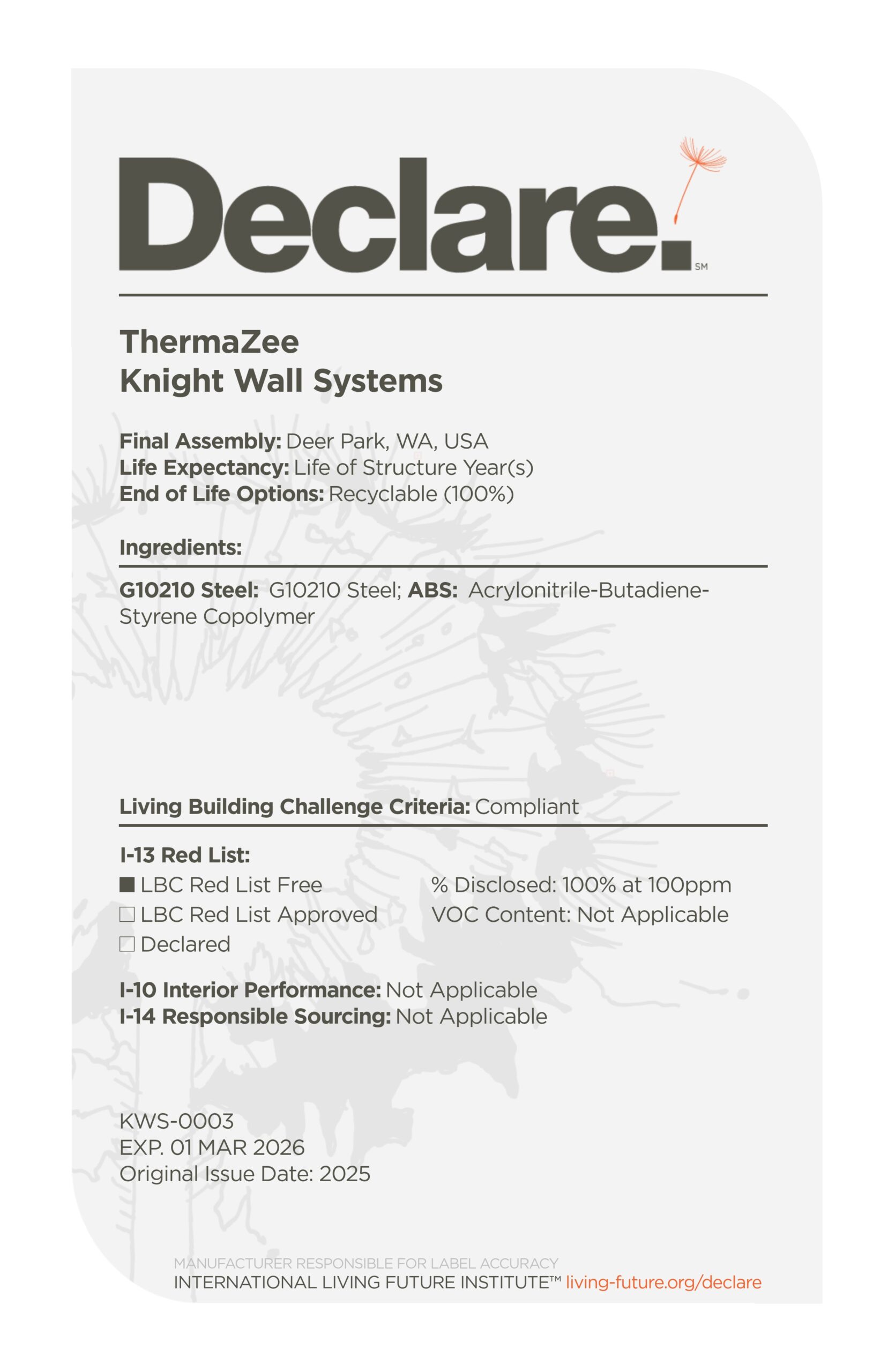

THERMAZEE® Declare Label
FREQUENTLY ASKED QUESTIONS
Questions About THERMAZEE®?
Technical and installation guidance based on the supplied product content.
Do the THERMAZEE® THERMASTOP® isolators come pre-assembled?
No. The THERMASTOP® isolators do not come pre-assembled. This allows installers to place isolators at each attachment point without making field adjustments.
How does THERMAZEE® manage anchor holes?
THERMAZEE® has pre-punched wall-anchor holes for installation efficiency.
Which anchors are used for THERMAZEE®?
THERMAZEE® should be installed using thermally isolated LD/TP fasteners selected for the substrate.
What insulation types are compatible with THERMAZEE®?
THERMAZEE® is compatible with rigid insulation, mineral wool, high-density mineral wool and spray foam.
How much weight can THERMAZEE® support?
THERMAZEE® supports cladding weights up to 25 PSF.*
What materials can THERMAZEE® be installed over?
THERMAZEE® can be installed over steel studs, wood studs, CMU and concrete.
What gauges is THERMAZEE® available in?
THERMAZEE® is available in 18 GA or 16 GA American-made steel.
What finishes are available for THERMAZEE®?
THERMAZEE® is available in ZM40 Zn-Al-Mg coated steel or 304 stainless steel, with a standard mill finish or Black PVDF finish.
Is THERMAZEE® third-party verified, EPD documented and Red List Free?
Yes. EPDs and Declare labels are available in the Documents & Downloads gallery.
What warranty is included with THERMAZEE®?
THERMAZEE® is backed by a 10-year limited warranty when paired with Knight Wall Systems Project-Specific Engineering.
*Spacing of components varies by project based on project specific conditions. Maximum allowable spacing and dead load (weight of cladding) is based on the total load (dead + live) acting on the assembly and connections. Depending on the system, insulation thickness will influence the systems capacities
Wall anchors must be specified and supplied by KWS for an extended written limited warranty. KWS will specify the exact anchor type, embedment depth and spacing for anchors in project specific engineering packages. ThermaStop thermal isolation washers must be used on all types of wall anchors with the HCI or CI System, regardless of the substrate.
